PFC - Parallel Flange Channels - Steel Channels

BS EN 10025-2 : 2004 - S275JR / S355JR / S355JO

Steel PFC Channels, frequently referred to as C-Channels, Channel Beams, or Structural Channels, are defined by their unique C-shaped profile. Featuring a single web and two parallel flanges, they are specifically designed to offer maximum rigidity while allowing for easy connection to flat surfaces. This makes them an indispensable component in modern structural framing and civil engineering where high-performance support is required. We stock a huge range of Parallel Flange Channels / PFC's available for immediate off-the-shelf delivery using our own reliable and efficient nationwide transport fleet.


Primary Applications & Use Cases:

Parallel flange channels act as secondary beams, joists, and lintels for commercial and residential projects.
Industrial Platforms: Supporting mezzanine floors, storage levels, and heavy-duty machinery.
In Civil Engineering they are critical for retaining walls, bridge supports, and infrastructure reinforcement.

PFC - Parallel Flange Channels - Steel Channels

VIEW OUR QUALITY CERTS

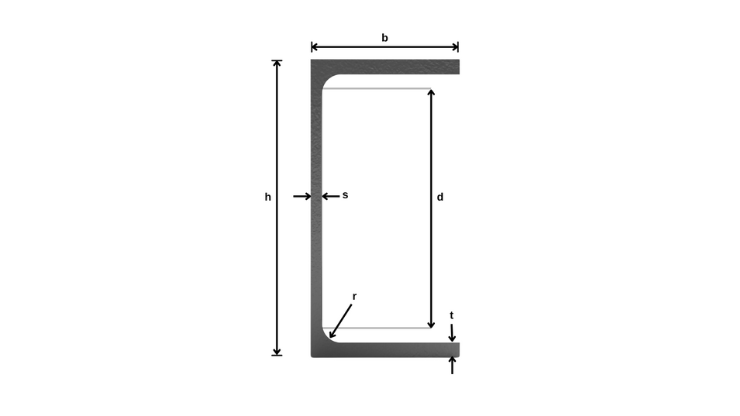

Parallel Flange Channel Sizes & Weights

Size (mm) Kg/m

Depth mm

(h)

Width mm

(b)

Web mm

(s)

Flange mm

(t)

Root Radius

mm (r)

Depth between

fillets mm (d)
100 x 50 x 10 10.2 100 50 5.0 8.5 9 65
125 x 65 x 15 14.8 125 65 5.5 9.5 12 82
150 x 75 x 18 17.9 150 75 5.5 10.0 12 106
150 x 90 x 24 23.9 150 90 6.5 12.0 12 102
180 x 75 x 20 20.3 180 75 6.0 10.5 12 135
180 x 90 x 26 26.1 180 90 6.5 12.5 12 131
200 x 75 x 23 23.4 200 75 6.0 12.5 12 151
200 x 90 x 30 29.7 200 90 7.0 14.0 12 148
230 x 75 x 26 25.7 230 75 6.5 12.5 12 181
230 x 90 x 32 32.2 230 90 7.5 14.0 12 178
260 x 75 x 28 27.6 260 75 7.0 12.0 12 212
260 x 90 x 35 34.8 260 90 8.0 14.0 12 208
300 x 90 x 41 41.4 300 90 9.0 15.5 12 245
300 x 100 x 46 45.5 300 100 9.0 16.5 15 237
380 x 100 x 54 54.0 380 100 9.5 17.5 15 315
430 x 100 x 64 64.4 430 100 11.0 19.0 15 362
The Barrett Advantage: Unrivalled Stock & Compliance
Choosing Barrett Steel means choosing a partner committed to traceability and reliability. We stock PFC channels in S275JR and S355JR grades, all manufactured to recognised UK and EU standards. To reduce your on-site labour, we provide plasma coping, cutting, and precision drilling. Our nationwide supply chain ensures that your steels are delivered when your project requires them.

To order Parallel Flange Channels, use find a depot button below, type in your postcode and contact your local depot directly.
OUR PRODUCTS AND SERVICES SPECIALISM
FILTER
CLOSE close button
FILTER BY:
PRODUCT
SERVICES
BY DEPARTMENT:
General Steels
General Services
Reset
Filter
Hollow Sections FIND OUT MORE
Structural Steel Sections FIND OUT MORE
Merchant Bar Steel FIND OUT MORE
Mild Steel Angles FIND OUT MORE
Steel Sheets and Plates FIND OUT MORE
Cutting and Laser Services FIND OUT MORE
Drilling FIND OUT MORE
Shotblasting and Painting FIND OUT MORE
Punching and Shearing FIND OUT MORE
Plate Profiling FIND OUT MORE

Expert FAQs

Specific to Barrett Steel
Yes, Bring a Suitable Vehicle!

Suitable Vehicles for collections are :
  • Curtain Sided Vehicles,
  • Hiab Vehicles
  • and any open topped vehicle such as a Flat Bed.

ALL vehicles must have a minimum bed length of 4m, be rated for the weight and dimensions of your order Equipped with appropriate load space Fitted with approved lashing or strapping points In a safe, roadworthy condition
We do not permit collections for items over 25kg in: Cars, Vans, estate vehicles, or SUVs,  makeshift trailers or modified vehicles, Pickups without high sides or proper strapping systems Vehicles with visible defects
We cater to everyone—from national Tier 1 contractors to local independent builders.
With 25+  depots across the UK and Ireland our dedicated fleet ensure nationwide delivery to any site.
We stock channels in hot-rolled S275JR and S355JR grades to meet various structural demands
We provide drilling, plasma coping, and shot blasting/priming to support floor and mezzanine construction.
With over 25 depots across the UK and Ireland, we offer nationwide supply and local expertise for any project size.
General Facts
The C-shaped profile with parallel flanges allows for easy connection to flat surfaces, making it more versatile for secondary supports than standard beams.
They are frequently specified for retaining walls, bridge supports, and infrastructure reinforcement due to their rigidity.
Yes, the profile allows for flexible installation—oriented sideways or even upside-down—to optimize load-bearing. Always consult a structural engineer.
PFCs (Parallel Flange Channels) are preferred when you need a flat mounting surface on one side, such as for floor joists, stair stringers, or when bolting steel to a flat wall or timber. Always consult a structural engineer.
PFC (Parallel Flange Channel) is a structural steel section with a C-shaped profile. Unlike traditional channels, its flanges run exactly parallel to each other.

Why use PFC?

The uniform flange thickness allows for faster, more secure assembly in steel frames. It's high Strength offers excellent load-bearing capacity for lintels, mezzanine floors, and vehicle chassis.

Barrett Steel stocks PFCs in grades S275 and S355, fully certified to BS EN 10025.
